Overview

DS model.jpg


Overview

Cam Index Drives  indexing drive are classified into the following three types with the configurations of the output portions: Shaft, flange and table models ,This is one of our conventional products. We provide it with a selection of either straight or tapered shafts. It is easy to use and install.



Features:
Available in many sizes and indexing configurations.
High speed input (700 rpm)
Low frictional torque reduces hysteresis loss.
Index mounts in any position with gearmotor mounting on either side of the index.



Specifications
DS Series Specifications



DescriptionUnit 45DS60DS70DS80DS
Indexing   stops
2,3,4,5,6,8,12,16,20,24,30,32,60,40,48
Input   speed rmp0 to 700
Output   Allowable Thrust LoadN784178421562156
OUtput   Allowable Radial LoadN711147021562156
Output Static   TorqueNmRefer to Torque Transfer Table
Output   Torsional RigidityNm/rad6.08x1031.37x1042.84x1045.29x104
Output Moment   of Inertiakg..m21.5x10-43.4x10-41.05x10-31.79x10-3
Output   allowable Bending ForceN.m24.534.363.763.7
Input Max   Thrust Load N83398014702058
Input Max   Repetitious  Bending ForceN73593110781862
Input Max   Repetitious  Allowable TorqueN.m39.258.893.1181.3
Input   Torsional RigidityN.m/rad2.74x1034.12x1038.43x1031.67x104
Input Moment   of Inertiakg .m28.0x10-54.75x10-41.5x10-32.25x10-3
Indexing   Accuracy(1 dwell )sec±60±45±30±30
Indexing   Accuracy(2 dwell )sec±120±90±60±60
Repeatabilitysec30201515
Product   Weightkg Approx. 6Approx. 10Approx. 16Approx. 29


DescriptionUnit 110DS140DS170DS180DS
Indexing   stops
2,3,4,5,6,8,12,16,20,24,30,32,60,40,48
Input   speed rmp0 to 700
Output   Allowable Thrust LoadN49007154813411760
OUtput   Allowable Radial LoadN53908428960414700
Output Static   TorqueNmRefer to Torque Transfer Table
Output   Torsional RigidityNm/rad8.82x1041.86x1054.02x1054.9x105
Output Moment   of Inertiakg..m29.05x10-32.63x10-26.25x10-20.195
Output   allowable Bending ForceN.m166.6313.6392931
Input Max   Thrust Load N3528431257825782
Input Max   Repetitious  Bending ForceN28425488980010241
Input Max   Repetitious  Allowable TorqueN.m316.673514211441
Input   Torsional RigidityN.m/rad3.04x1047.84x1041.37x1051.37x105
Input Moment   of Inertiakg .m27.0x10-32.75x10-27.25x10-29.75x10-2
Indexing   Accuracy(1 dwell )sec±30±30±30±30
Indexing   Accuracy(2 dwell )sec±60±60±60±60
Repeatabilitysec15151515
Product   Weightkg Approx. 51Approx. 120Approx. 200Approx. 220

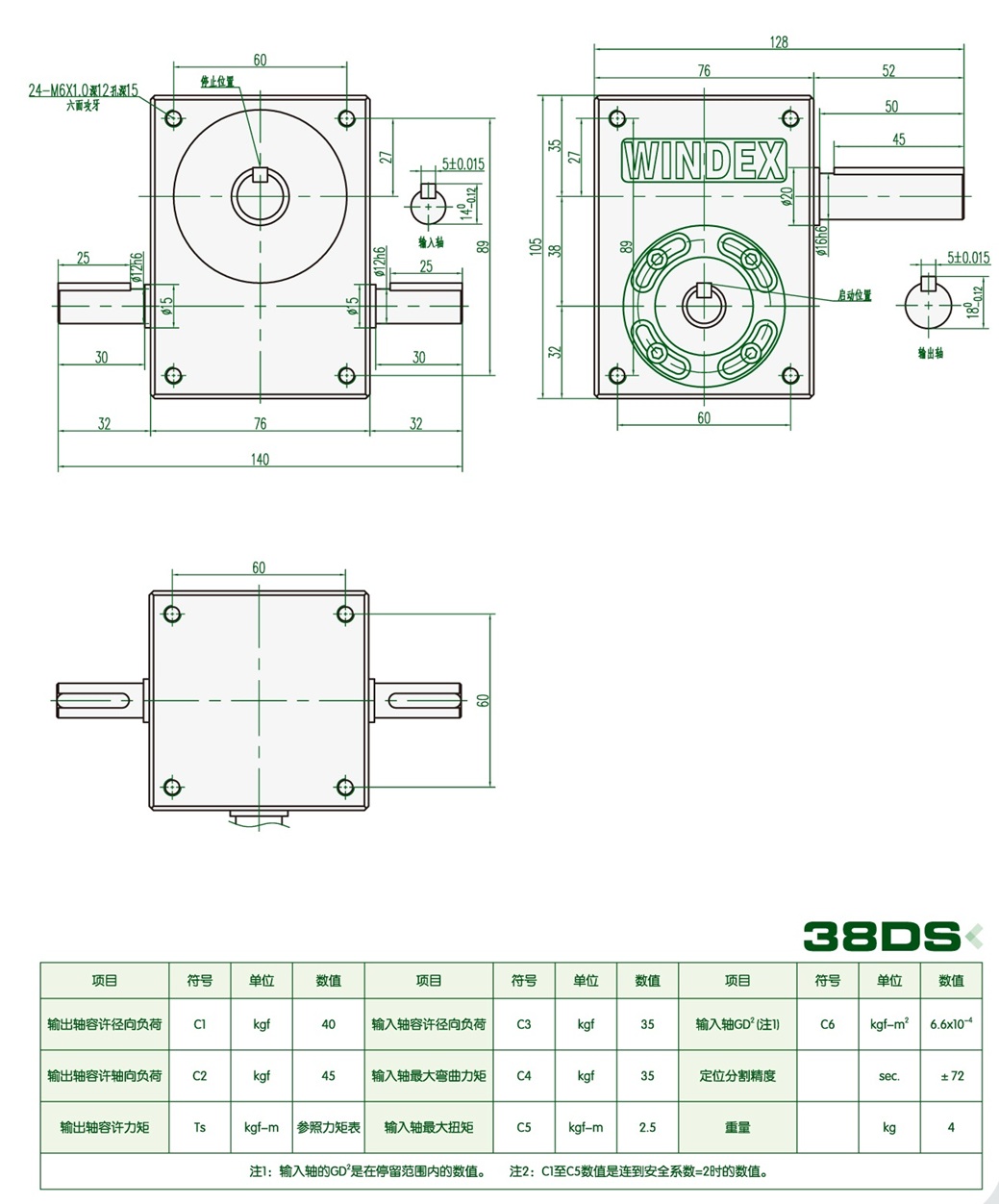

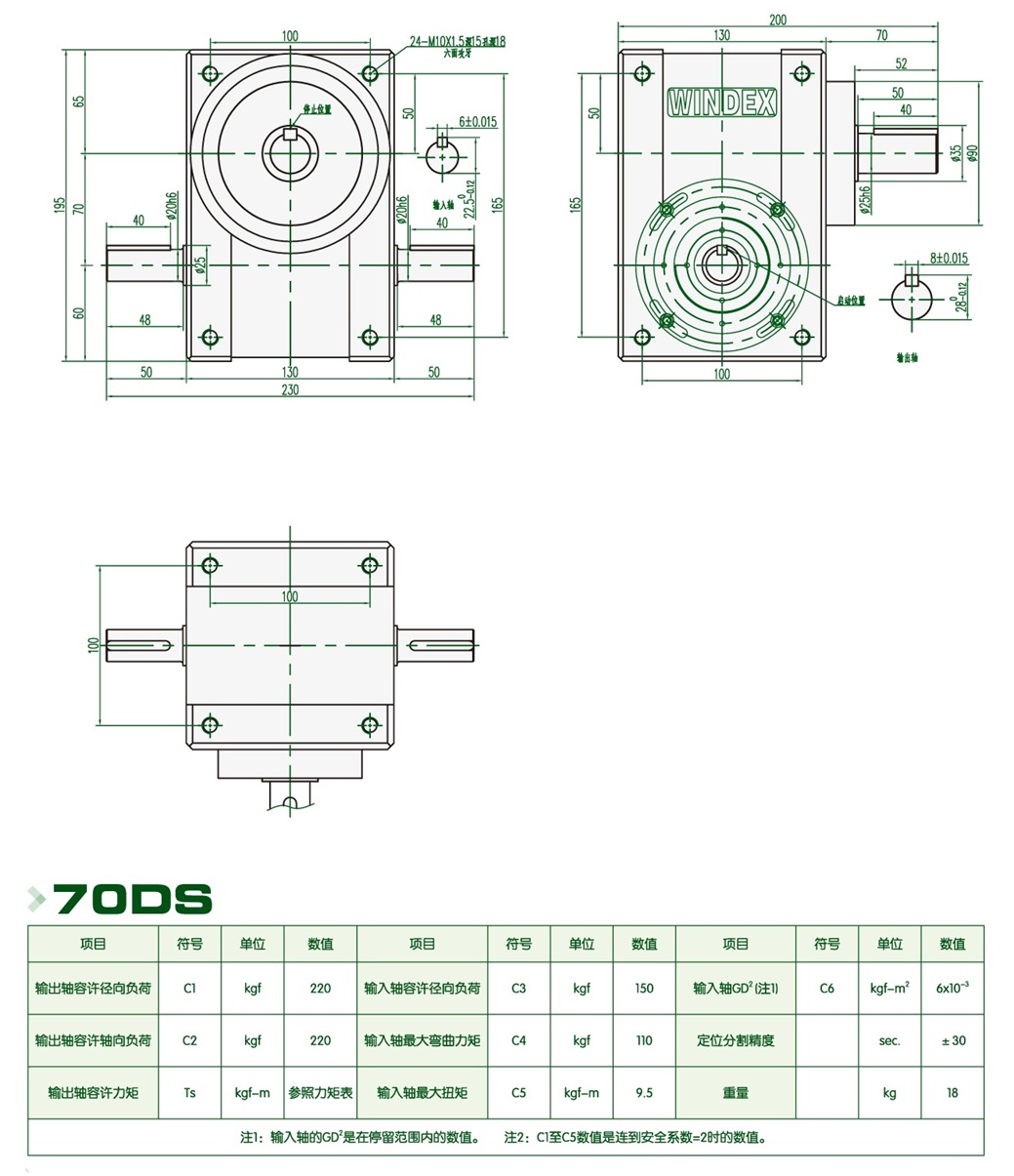

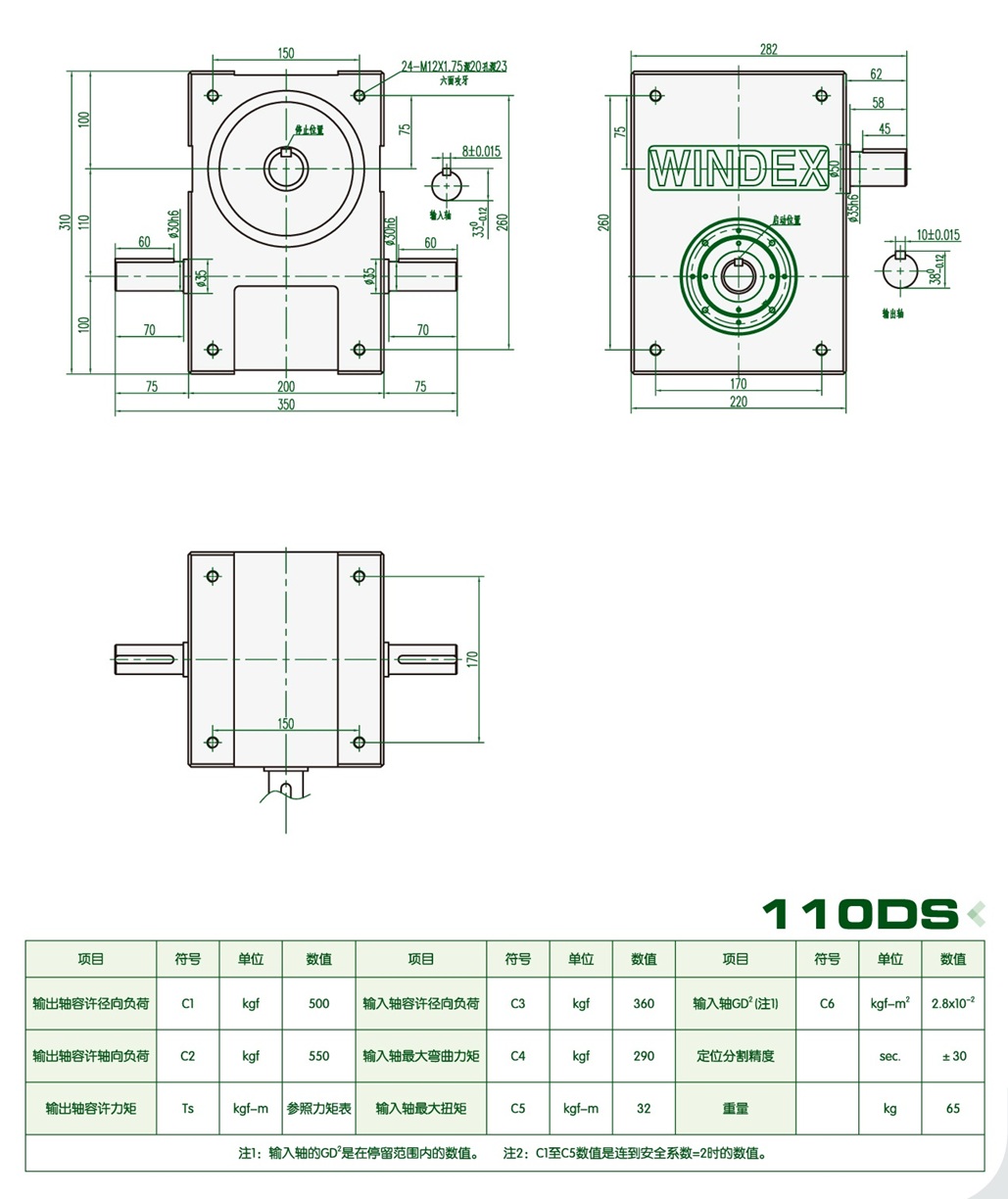

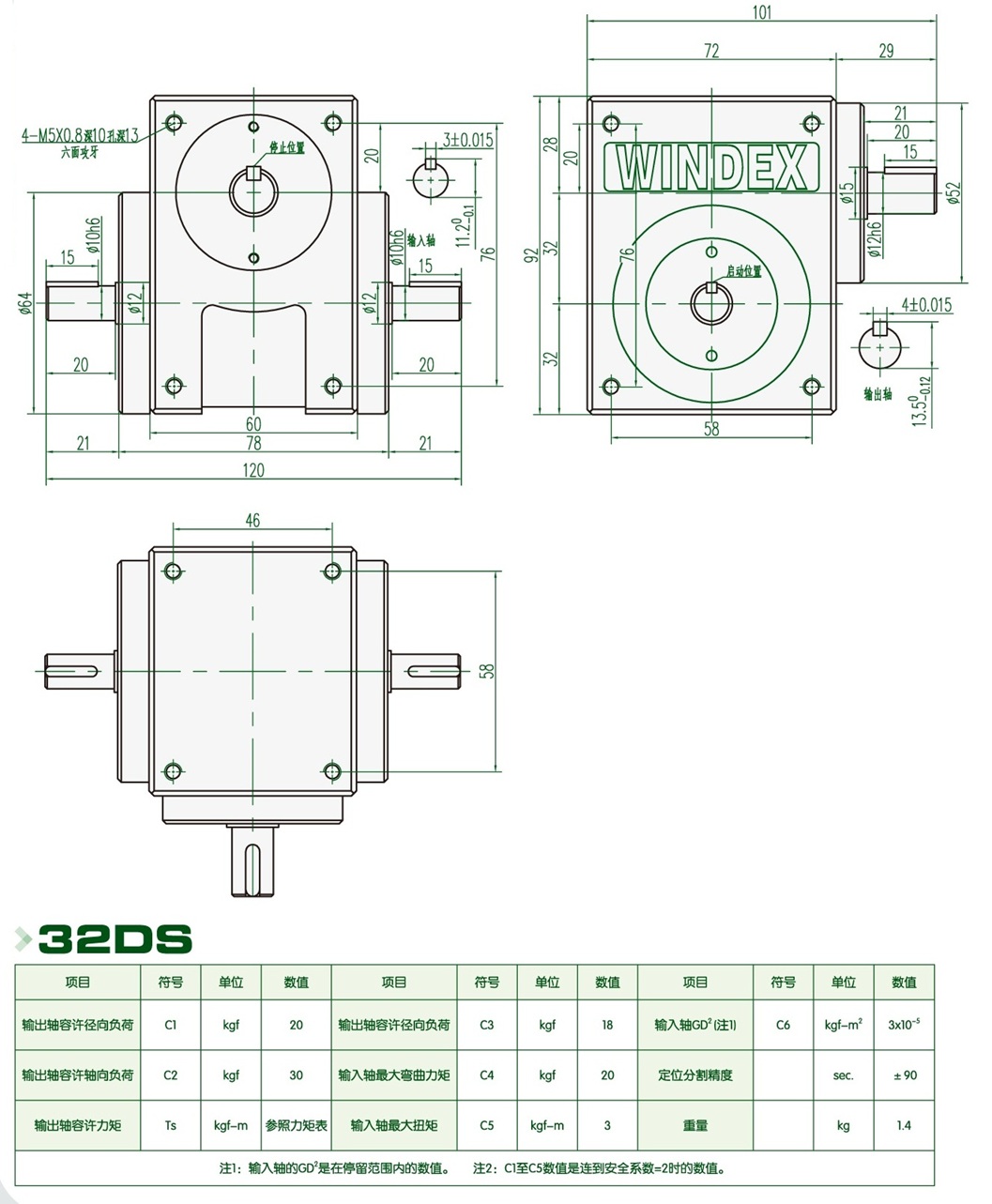

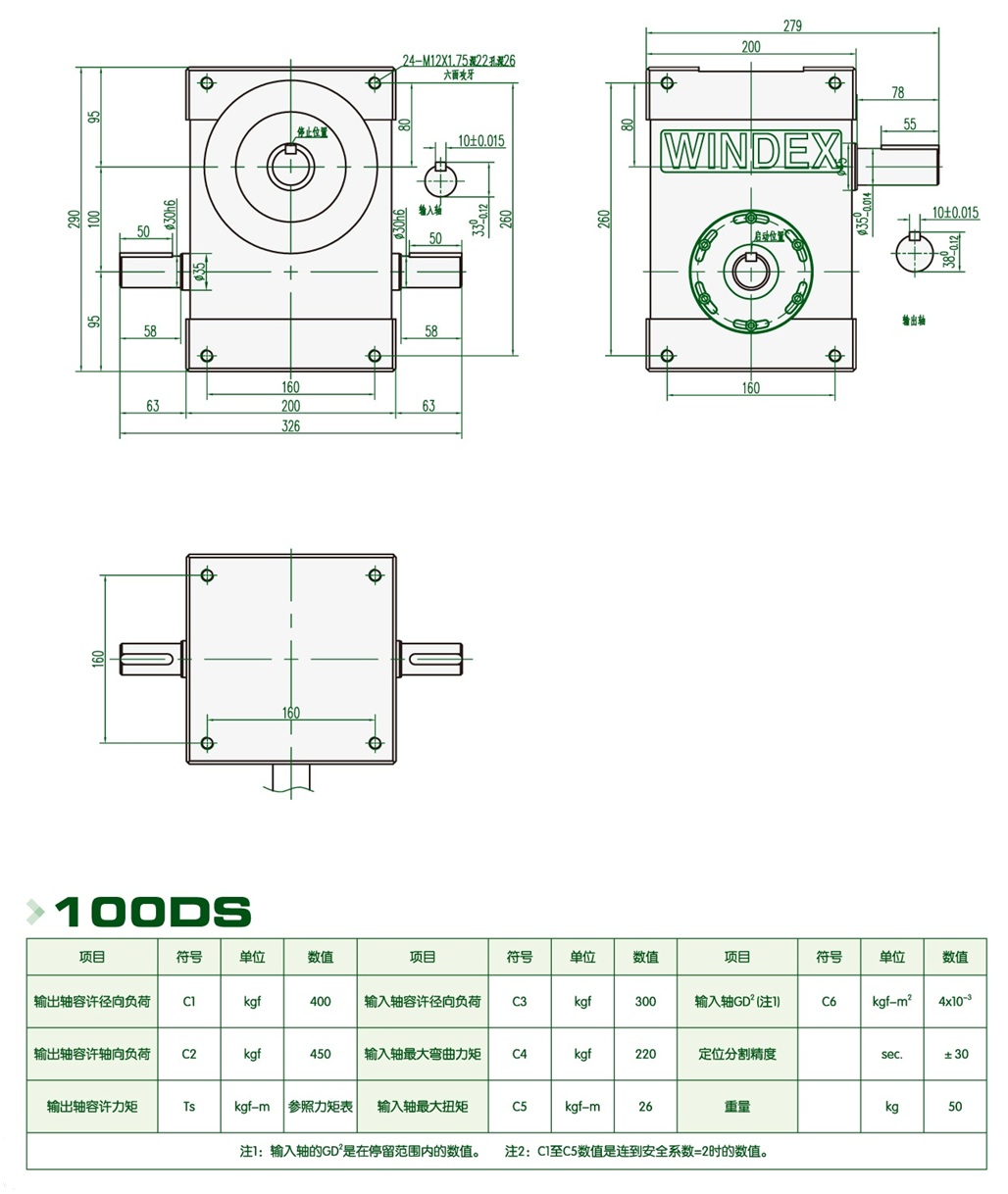

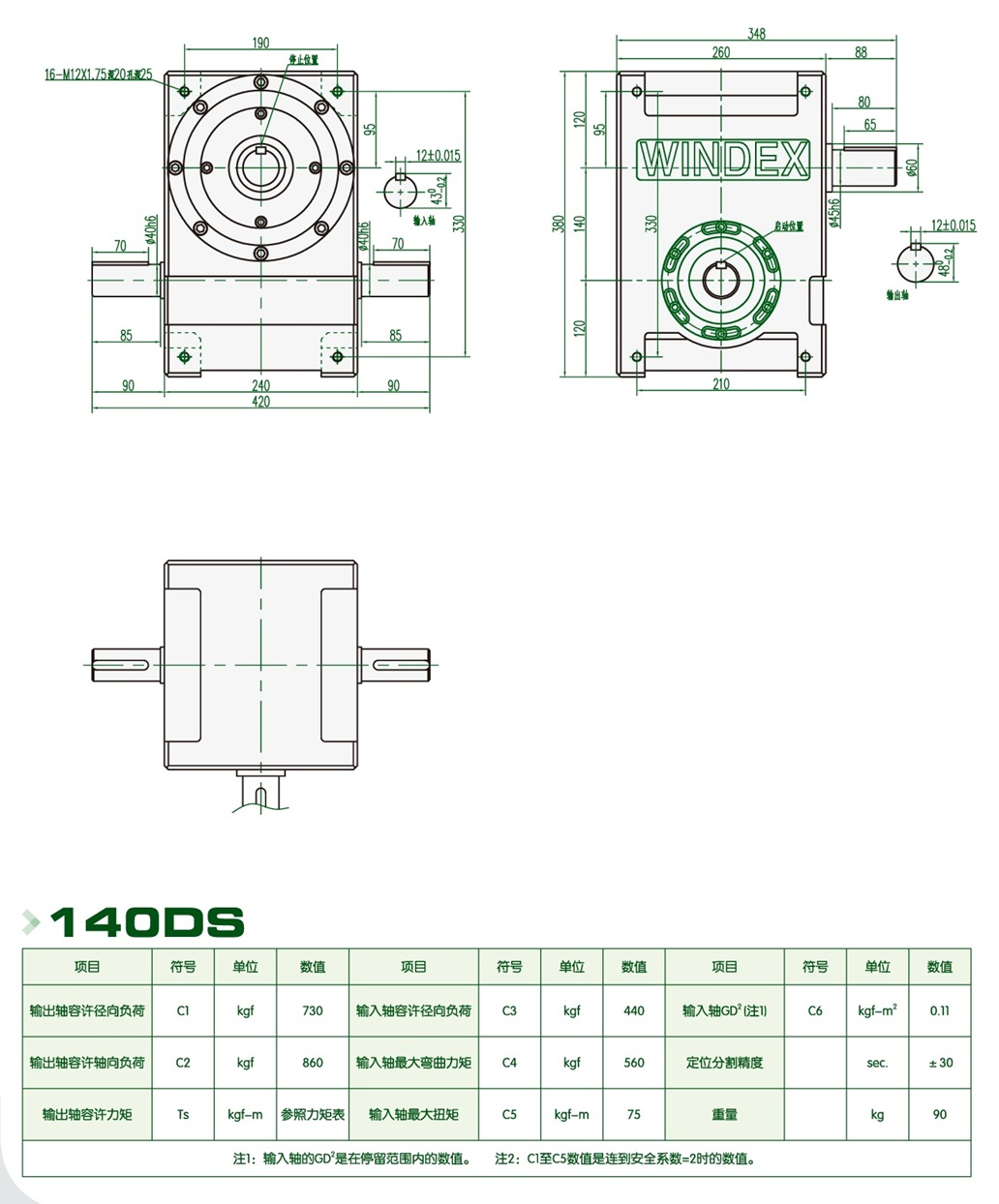

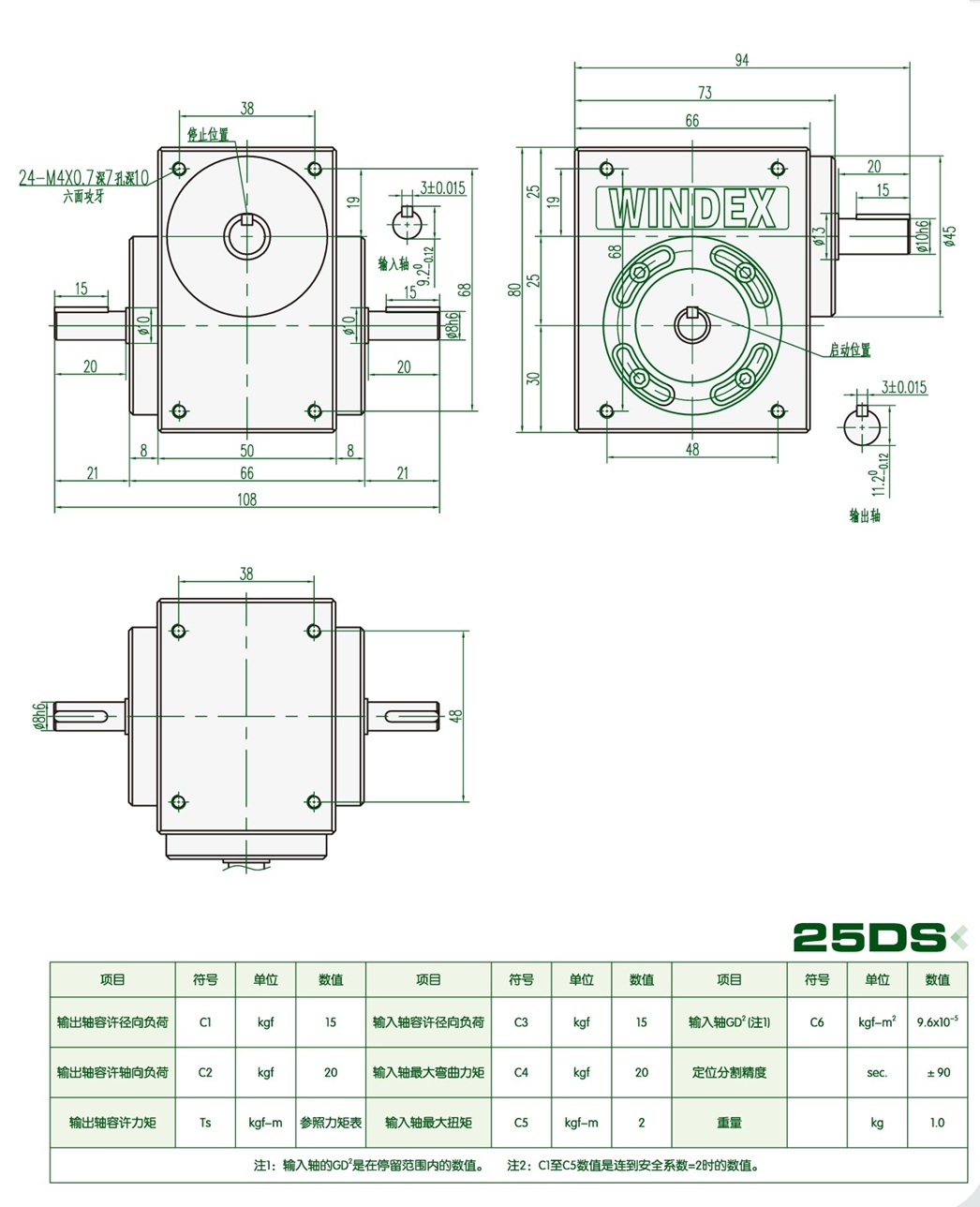

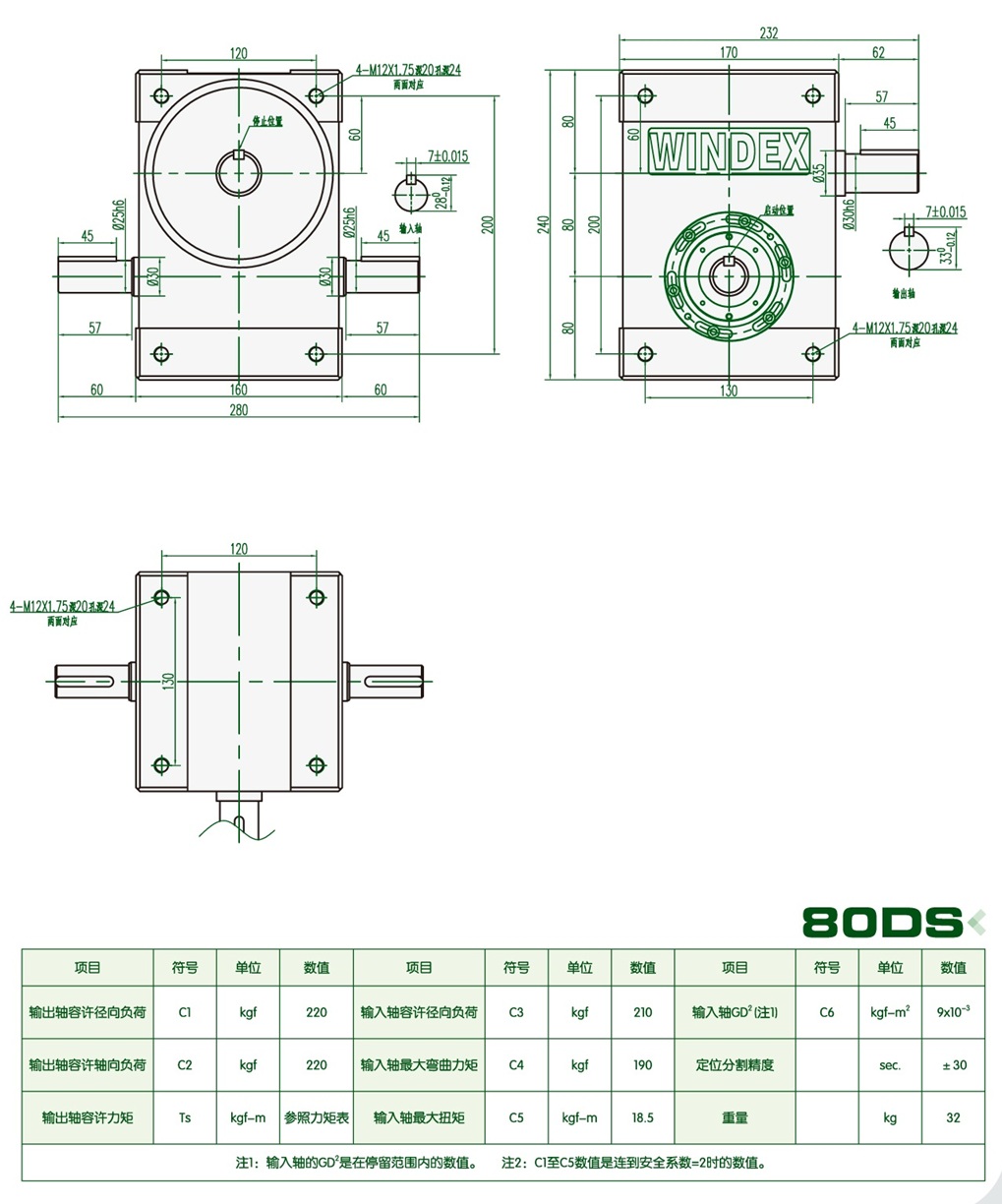

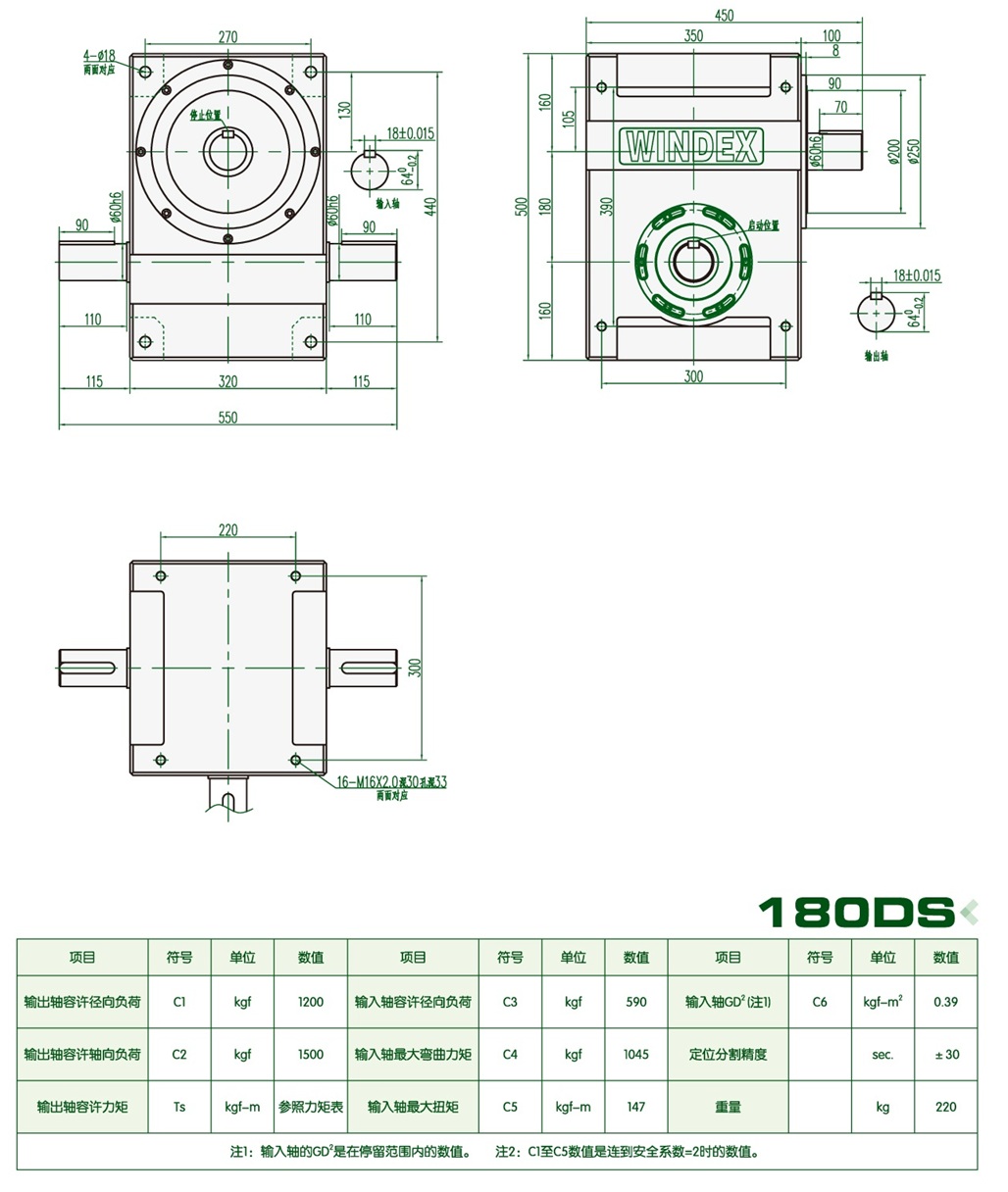

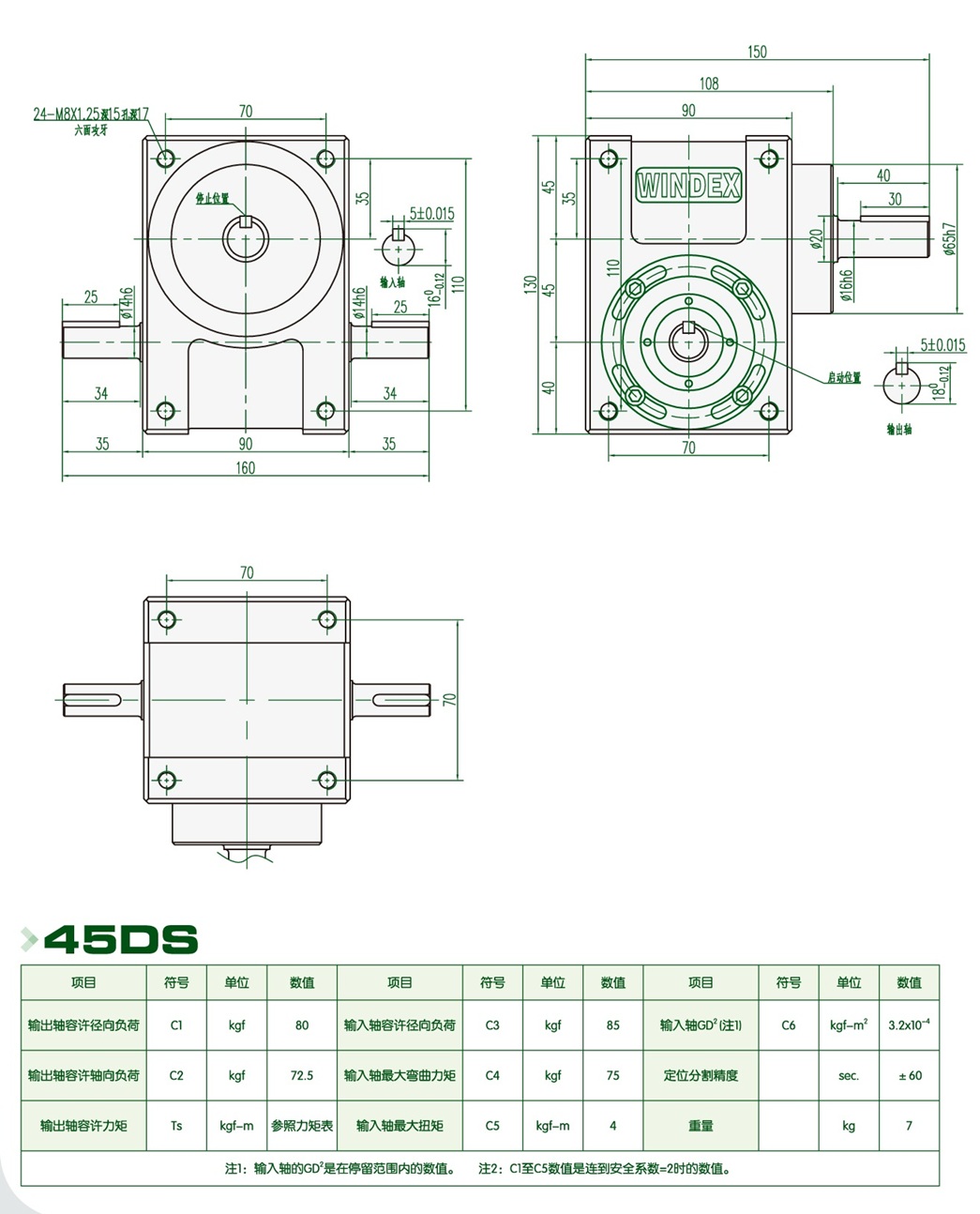

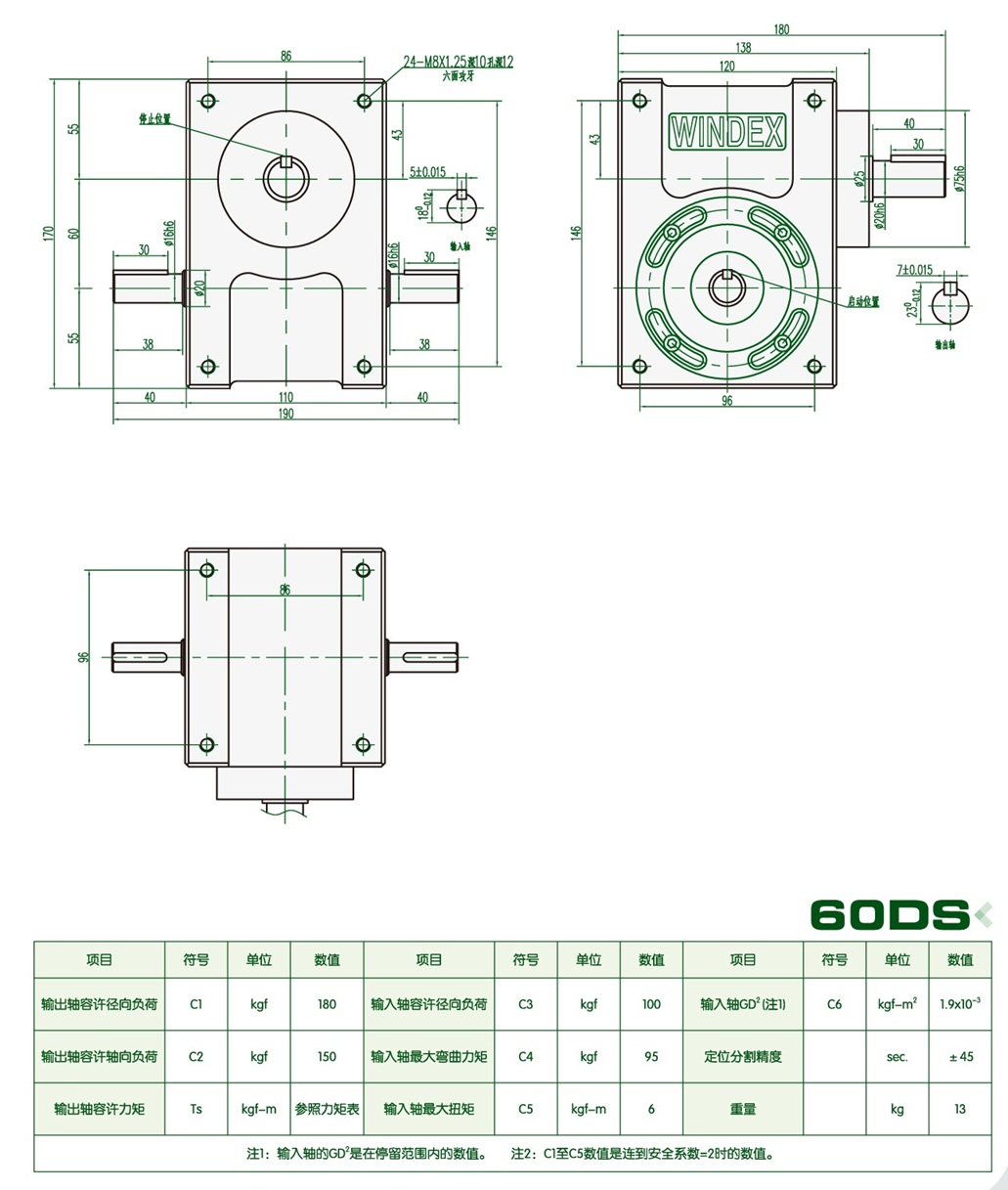

The dimension drawing :
